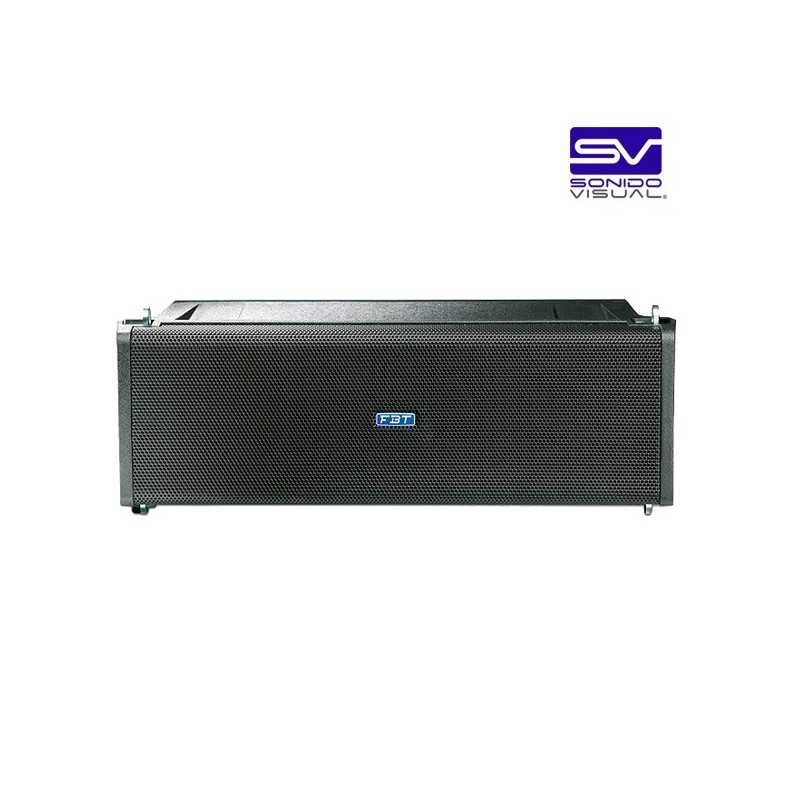

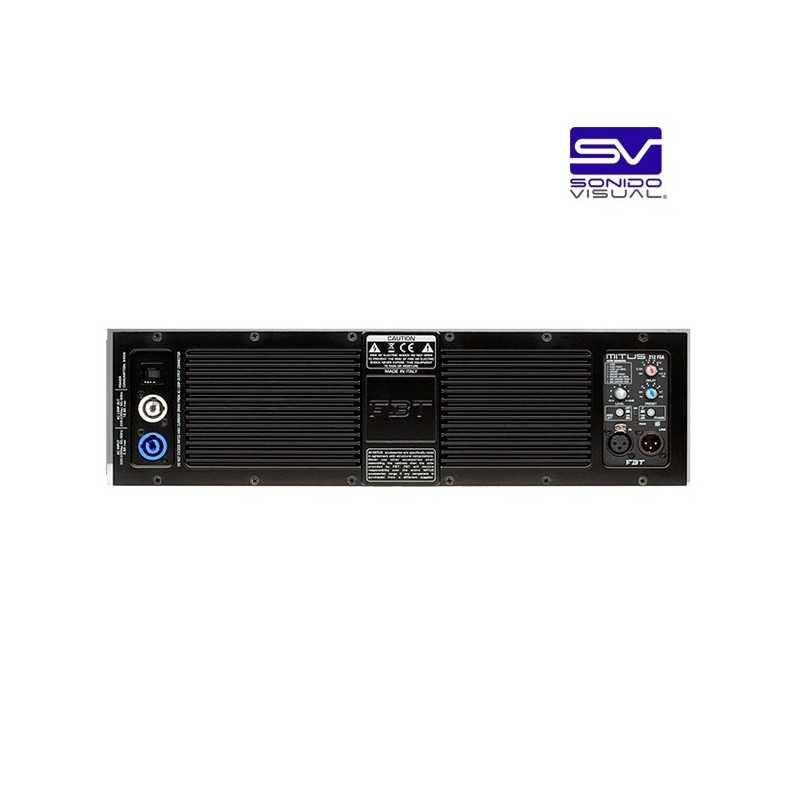

FBT-Mitus-206LA
Built-in amplifier LF/HF: 600/300 W RMS
Built-in amplifier peak LF/HF: 1200/600 W
Frequency response: 68Hz - 20KHz -6dB
Low frequency woofer: 2 x 165 bobina 44 neodimio inch
High frequency driver: 1 x 36 bobina 64 neodimio inch
Maximum SPL cont/peak: 125/134 dB
Dispersion: 100°x10° max dipendente dal n° degli elementi H x V
Input impedance: 22 Kohm
Crossover frequency: 1.2 KHz
Ac power requirements: 640 VA
Input connector: XLR con loop
Power cord: 5 mm/inch
Net Dimension (WxHxD): 574x220x383 mm/inch
Net weight: 14 kg/lb
Transport Dimension (WxHxD): 655x455x280 mm/inch
Transport weight: 15.7 kg/lb
PWM amplifier
Switch mode power supply
Neodymium Woofer
Digital processor
Lightweight
Hardware for permanent
Especificaciones
• 2 x 6.5’’ (165 mm) B&C neodymium woofers with 1.7’’ (44 mm) coil
• 1.4’’ (36 mm) exit B&C neodymium driver with 2.5’’ (64 mm) coil
• Frequency response from 68Hz to 20KHz
• Latest class D built-in amplifiers, 600Wrms to the LF and 300Wrms to the HF with switch mode power supply
• DSP on-board with 8 presets, +/- 5db HF level control for accurate amplitude shading
• Control panel with XLR input and link, volume, presets, HF level, HP-filter, ground-lift
•100° horizontal waveguide with very low distortion and near flat wavefront up to 18Khz
•High impact polypropylene gas-injected enclosure withintegrated rigging hardwareadjustable with 0° to 10°angle between cabinets at2° step
• Ideal for small to medium sized application, from single pole mounted loudspeakers with 100°H x 10°V coverage
• to multiple cabinet full sized line array, the MITUS 206LA maybe used also in outdoor applications where the system is not directly exposed to the elements
• Wide range of hardware accessories for flying and ground stacked configurations
•Very lightweight, only 14Kg
